NVIDIA MMA4Z00-NS Compatible 800G OSFP SR8 Finned-Top (IHS) Twin-Port Transceiver — Dual MPO-12/APC, for Quantum-2 QM9700/QM9790
Warranty: Lifetime
Finned-Top (IHS) — the switch-side module, not the NIC-side module
NVIDIA MMA4Z00-NS compatible — 800G OSFP SR8 twin-port, 850nm multimode, breaks out to 2 x 400G
→ NVIDIA OSFP part-number crosswalk — Mellanox MMA/MMS numbers mapped to the new NVIDIA 980- numbers, with form factor, optics and the correct part for each end of the link.
OEM Equivalent: NVIDIA / Mellanox MMA4Z00-NS

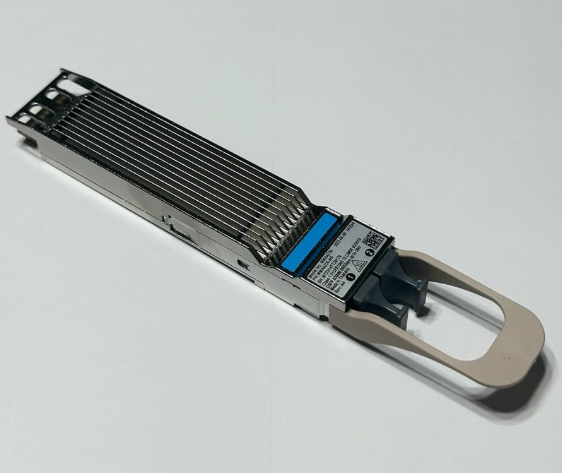

Description: Twin-port OSFP SR8 optical transceiver, 800Gb/s, finned-top / Integrated Heat Sink (IHS), dual MPO-12/APC, multimode
This is the finned-top module — the one that goes in the switch, not the server. Air-cooled Quantum-2 switch ports have no heatsink of their own, so the module has to carry its own fins. Put this in a ConnectX-7 and it will not seat. Put a flat-top module in an air-cooled switch and it seats fine, looks like it worked, and has no cooling path at all.
NVIDIA now calls this form factor IHS, for Integrated Heat Sink — the fins are integrated into the module's own metal top. Older documentation and existing BOMs still say "finned-top." Same part.
It is a twin-port module: 800G total, presenting as 2 x 400G. One of these serves two servers.
Which One Do I Need?
| Going into | You need |
|---|---|
| Air-cooled Quantum-2 switch (QM9700 / QM9790) | Finned-Top (IHS) — this product |
| ConnectX-7 / ConnectX-8 NIC, BlueField-3 DPU, DGX system | Flat-Top (RHS) — 400G single-port module |
The fins are either on the module or on the equipment. Never both, never neither.
The canonical topology: one twin-port finned module in the switch → two MPO-12/APC patch cords → two flat-top modules in two ConnectX-7 servers. When you are sizing an order, that is the ratio — for every two server ports, one switch module.
Technical Specifications
| Specification | Value |
|---|---|
| OEM Equivalent | NVIDIA / Mellanox MMA4Z00-NS |
| Form Factor | Twin-port OSFP, Finned-Top (Integrated Heat Sink / IHS) |
| Data Rate | 800Gb/s — 8 x 106.125Gb/s PAM4 |
| Optical Interface | SR8 (presents as 2 x SR4), 850nm, multimode (MMF) |
| Connector | Dual MPO/MTP-12 APC |
| Reach | 30m OM3 / 50m OM4 — see note below |
| Breakout | 1 x 800G, or 2 x 400G to two flat-top modules |
| Host Platforms | Quantum-2 air-cooled InfiniBand switches (QM9700, QM9790) |
| DOM / DDM | Supported |
| Coding | Coded specifically for NVIDIA / Mellanox |
| Standards | OSFP MSA, IEEE 802.3ck, Class 1 laser, RoHS |
| Warranty | Lifetime, backed by Resilient Tec |
| Condition | New |
Note on Reach: Why You'll See Both 50m and 100m
NVIDIA specifies 50m over OM4, and that is the figure to design against in an InfiniBand fabric. The optics are built to the SR MSA, which permits up to 100m over OM4 — both numbers are correct, they answer different questions. The standard describes what the optics can do under ideal conditions; NVIDIA's number is what they will support.
Usable reach past 50m depends on fiber grade and how many MPO matings sit in the path, because every additional mating costs optical budget. Design to 50m for NVIDIA support parity. Planning a longer run? Talk to us first.
Good to Know
- This module will not seat in a ConnectX-7 OSFP port. The port cage carries its own riding heatsink and there is no clearance for fins.
- 800G is not an upgrade at the server end — the ConnectX-7 OSFP port is a 400G port. If you are buying for a NIC, you want the 400G flat-top module.
- Liquid-cooled switch deployment? This is the air-cooled part. Liquid-cooled cold plates contact a flat surface, so those deployments need the 800G flat-top variant, MMA4Z00-NS-FLT. We do not stock it — but that is the part number to specify, and if someone has quoted you the finned part for a liquid-cooled switch, that quote is wrong.
- MMS4X00-NM and MMS4X00-NS are the 800G single-mode DR8 variants. The MMA / MMS prefix is the tell: MMA is multimode, MMS is single-mode.
- Running single-mode? This is not your module. Tell us what the fiber plant is and we will point you at the right part rather than sell you this one.
Quick Checklist — Is This the Right Module?
You are populating a port on an air-cooled Quantum-2 InfiniBand switch (QM9700 or QM9790). The port has no heatsink of its own. Your fiber plant is multimode (OM3 or OM4) with MPO-12/APC connectors. Your runs are 50m or shorter. You want one switch port to feed two 400G server ports.
Availability
In stock: 1 · Additional units ship on a 7–10 day lead time.
Building a cluster? Tell us how many ports you are populating and we will quote the switch-side and server-side modules together. Request a quote →
Warranty: lifetime, backed by Resilient Tec — not a manufacturer term. When a module fails you reach a named seller in Knoxville, Tennessee, not a ticket queue.
You Might Also Need
- 400G OSFP SR4 Flat-Top (RHS) transceiver — the server-side pair. Order two per module of these.
- MPO-12/APC multimode patch cords, Type B polarity — two per twin-port module
- OSFP DAC cables — when the run is short enough that copper beats optics
- Product guides — structured cabling, switches and the rest of the rack
Related Guides
Flat-Top or Finned-Top OSFP? How to Tell Which Module Your ConnectX-7 Actually Needs
NVIDIA OSFP Part-Number Crosswalk: Mellanox MMA/MMS to NVIDIA 980- Numbers
