MCP1600-E002E30 Compatible 100G EDR InfiniBand QSFP28 Passive DAC Cable, 2m
Warranty: Lifetime
100Gb/s EDR InfiniBand QSFP28 passive DAC, 2 m. Coded for NVIDIA / Mellanox.

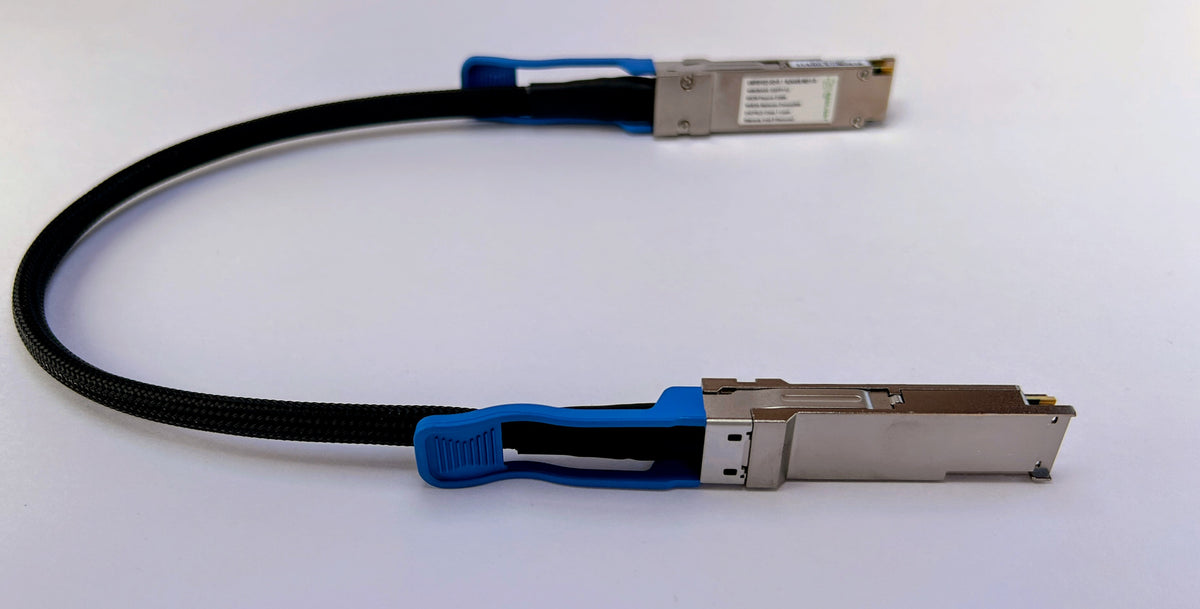

Compatible with NVIDIA / Mellanox MCP1600-E002E30. A QSFP28-to-QSFP28 passive direct attach copper cable for 100Gb/s EDR InfiniBand, the fabric behind DGX-1, DGX-2 and most V100-era HPC clusters. Passive copper is the cheapest, lowest-latency, lowest-power way to make an in-rack EDR link.
Where It Fits
- Switches: NVIDIA / Mellanox Switch-IB and Switch-IB 2 EDR switches (SB7700, SB7790, SB7800, SB7890).
- Adapters: ConnectX-4, ConnectX-5 and ConnectX-6 VPI adapters running InfiniBand at EDR.
- Systems: DGX-1 (V100), DGX-2 and V100 / P100 servers on an EDR fabric.
InfiniBand or Ethernet? The "E" in MCP1600-E marks an EDR InfiniBand cable. If your ports run 100GbE, use the Ethernet-coded MCP1600-C001. Not sure how your adapter is configured? Send us the model and we will tell you.
Technical Specifications
| Compatible part number | NVIDIA / Mellanox MCP1600-E002E30 |
| Data rate | 100Gb/s EDR InfiniBand (4 × 25Gb/s NRZ) |
| Connectors | QSFP28 to QSFP28 |
| Cable type | Passive direct attach copper (twinax) |
| Length | 2 m (6.6 ft) |
| Wire gauge | 30 AWG |
| Jacket | LSZH |
| Power | Passive, effectively 0 W |
| Operating temperature | 0 to 70 °C |
| Standards | SFF-8665 (QSFP28), IBTA EDR |
| Condition | New |
| Warranty | Lifetime, backed by Resilient Tec |
Good to Know
- Other lengths in stock: 0.5 m · 1 m.
- Past about 3 m, use optics instead: the MMA1B00-E100 EDR SR4 transceiver runs to 100 m over MPO-12 multimode fiber.
- Building or extending a V100-era cluster? See the V100 / EDR interconnect matrix for every link.
In stock and shipped from Knoxville, Tennessee. Free US shipping on every order, no minimum. Need more than a few? Request a quote.
