C9300-48P-E, Cisco Catalyst 9300 48-Port PoE+ Switch, Network Essentials, New
Warranty: Lifetime
Quick answer: The Cisco Catalyst C9300-48P-E is a 48-port Gigabit PoE+ Layer 3 stackable access switch with a modular uplink slot, licensed with Cisco Network Essentials. Resilient Tec sells it new and factory sealed, covered by our lifetime warranty, with free US shipping from Knoxville, TN. Need to stretch the budget? We also stock a refurbished C9300-48P-E, fully tested and under the same lifetime warranty.
Cisco Catalyst C9300-48P-E Switch – Specifications
Product Overview

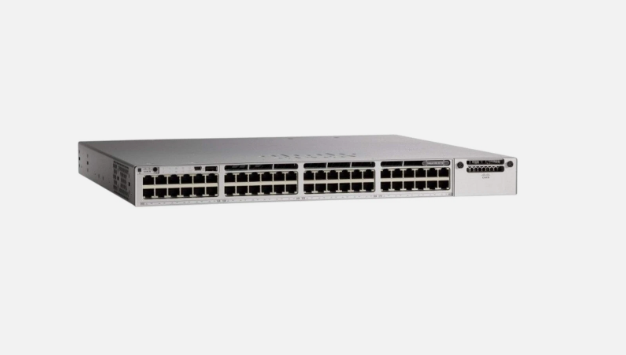

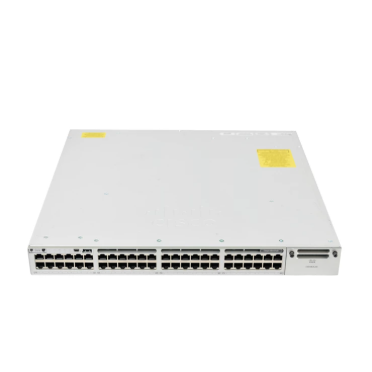

The Cisco Catalyst C9300-48P-E is a 48-port PoE+ Layer 3 stackable enterprise access switch with a modular uplink slot. It is part of the Catalyst 9300 family, built for security, resiliency, and high-performance access, running Cisco IOS XE with the Network Essentials feature set.
Condition: New
New Cisco C9300-48P-E, factory sealed in the original Cisco packaging. Covered by the Resilient Tec lifetime warranty: advance replacement when in stock, otherwise repair or replacement with an equivalent unit.
Hardware
48 × 10/100/1000 Mbps RJ-45 ports, all PoE+ (IEEE 802.3at, up to 30 W per port)
PoE budget: 437 W with the standard 715 W power supply; expandable with a second supply or a 1100 W supply
Modular uplink slot: C9300-NM-4G (4 × 1G), C9300-NM-4M (4 × mGig), C9300-NM-8X (8 × 10G), C9300-NM-2Y (2 × 25G), or C9300-NM-2Q (2 × 40G)
Dual hot-swappable power supply bays (PWR-C1-715WAC, PWR-C1-1100WAC-P)
Three hot-swappable fan modules (N+1 redundant) with front-to-back airflow
Flash memory: 16 GB
DRAM: 8 GB
Dimensions: 1.73 × 17.5 × 17.5 in (4.4 × 44.5 × 44.5 cm), 1RU
Approximate weight: 18.1 lb
Performance
Switching capacity: 256 Gbps
Forwarding rate: 190.48 Mpps
StackWise-480: up to 480 Gbps stack bandwidth, up to 8 switches per stack
MAC addresses: 32,000
IPv4 routes: 32,000
VLAN IDs: 4,094
Jumbo frames: 9,198 bytes
Software & Features
Operating system: Cisco IOS XE with Network Essentials license
Layer 3 routed access: static routing, RIP, OSPF and EIGRP stub, PBR
Security: MACsec-128 encryption, 802.1X access control
Automation and programmability: Cisco Catalyst Center (formerly DNA Center) support, NETCONF/RESTCONF/YANG APIs
What's Included
Cisco C9300-48P-E switch
One default 715 W AC power supply (PWR-C1-715WAC)
Not included: uplink network module, second power supply, stacking cables, Cisco DNA / Catalyst subscription, or Cisco SmartNet contract
Compatibility & Licensing Notes
Stacks only with Catalyst 9300 (non-L, non-X) models
Network Essentials is a perpetual license tied to the hardware
Frequently Asked Questions
Is the C9300-48P-E PoE+ or UPOE?
PoE+. All 48 ports support IEEE 802.3at PoE+ at up to 30 W per port. If you need 60 W Cisco UPOE, look at the C9300-48U instead.
How much PoE power does the C9300-48P-E have?
437 W of PoE budget with the standard 715 W power supply (PWR-C1-715WAC). Adding a second supply or moving to the PWR-C1-1100WAC-P 1100 W supply increases the available PoE budget.
What does the -E mean in C9300-48P-E?
-E is the Network Essentials license tier: Layer 2, routed access (static, RIP, OSPF and EIGRP stub), MACsec-128, and 802.1X. The -A models (Network Advantage) add full OSPF, EIGRP, BGP, IS-IS, and advanced segmentation.
Does the C9300-48P-E have uplink ports?
There are no fixed uplinks. It has one modular uplink slot for a Catalyst 9300 network module such as the C9300-NM-8X (8 x 10G SFP+), C9300-NM-4G, C9300-NM-4M, C9300-NM-2Y (2 x 25G), or C9300-NM-2Q (2 x 40G).
Can the C9300-48P-E stack with C9300L or C9300X switches?
No. It stacks up to 8 members with other Catalyst 9300 (non-L, non-X) switches over StackWise-480. The C9300L uses StackWise-320 and the C9300X uses StackWise-1T, so they are not stack-compatible.
What is the difference between the new and refurbished C9300-48P-E at Resilient Tec?
The hardware and specifications are identical. The new unit is factory sealed; the refurbished unit is pre-owned, tested, and lower priced. Both carry the same lifetime warranty and free US shipping.
What warranty and shipping come with it?
Resilient Tec's lifetime warranty with advance replacement when in stock. US standard shipping is free with no minimum, and orders typically arrive in 3 to 5 days.
