C9300-NM-8X, Cisco Catalyst 9300 Series 8 x 10G Network Module, C9300-NM-8X, Ref
Warranty: Lifetime
Condition: Refurbished
Product Overview

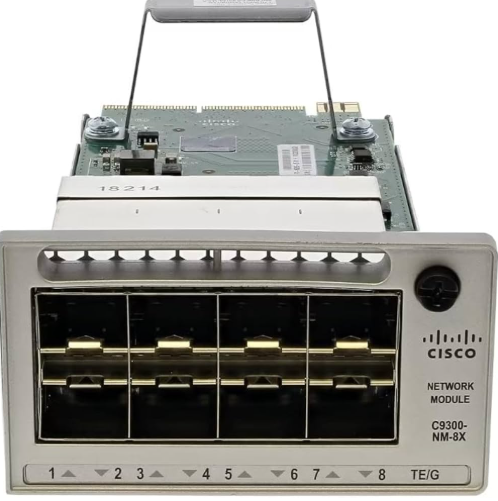

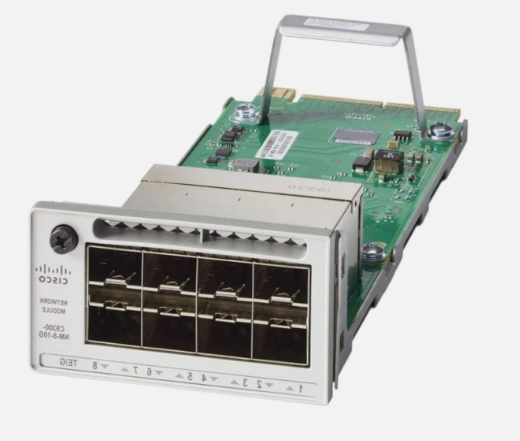

The Cisco C9300-NM-8X is an 8-port 10 Gigabit Ethernet SFP+ network module for the Cisco Catalyst 9300 Series switches. It installs into the switch's dedicated network module bay to add high-speed 10GbE uplink capacity, giving Catalyst 9300 access switches the fiber and copper uplink bandwidth needed for campus, branch, and enterprise aggregation. This unit has been professionally tested, refurbished, and inspected to ensure full functionality.
Key Features
- Adds 8 x 10 Gigabit Ethernet SFP+ uplink ports to compatible Catalyst 9300 switches
- Delivers up to 80 Gbps of aggregate uplink bandwidth per switch
- Supports 10G SFP+ optics (SR, LR, ER, ZR), 10G-T copper, DAC, and AOC connectivity, with backward compatibility for 1G SFP transceivers
- Hot-swappable, field-replaceable module with tool-free installation and no chassis reload required
- Automatically recognized by Cisco IOS XE, no additional licensing required
- Ideal for high-density fiber uplinks, stacking aggregation, and campus or branch backbone connections
Technical Specifications
- Ports: 8 x 10 Gigabit SFP+ slots
- Data Rate: Up to 10 Gbps per port, 80 Gbps aggregate
- Compatibility: Cisco Catalyst 9300 Series switches with a network module bay (not compatible with Catalyst 9300X models, which require the C9300X-NM-8Y module)
- Form Factor: Plug-in network module
- Weight: 1.35 lbs
- Hot Swappable: Yes
- Part Number: C9300-NM-8X
Frequently Asked Questions
What does the Cisco C9300-NM-8X do?
It is an expansion network module that adds eight 10 Gigabit Ethernet SFP+ uplink ports to a compatible Cisco Catalyst 9300 Series switch.
Which switches is the C9300-NM-8X compatible with?
It is compatible with Cisco Catalyst 9300 Series switches that include a network module bay. It is not compatible with Catalyst 9300X models, which use the C9300X-NM-8Y module instead.
Is the C9300-NM-8X hot-swappable?
Yes. It is field-replaceable and can be installed or removed without powering down or reloading the switch.
What condition is this unit in?
This C9300-NM-8X is professionally refurbished, tested, and inspected for full functionality, and it ships with Resilient Tec's lifetime warranty and same-day shipping.
