WS-C3850-24XS-E, Cisco Catalyst 3850-E series, 24 port SFP, IP services switch, Refurbished
Warranty: Lifetime
Condition: Refurbished

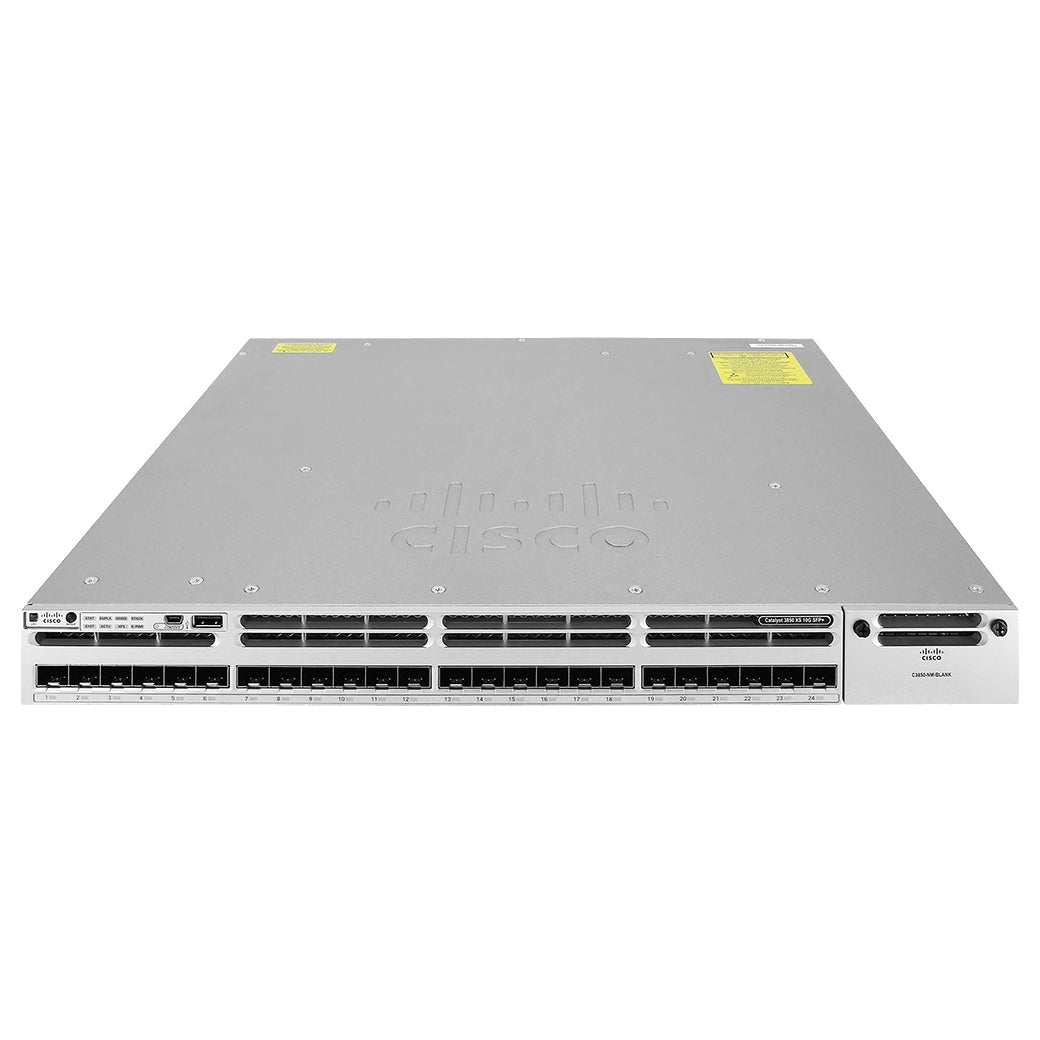

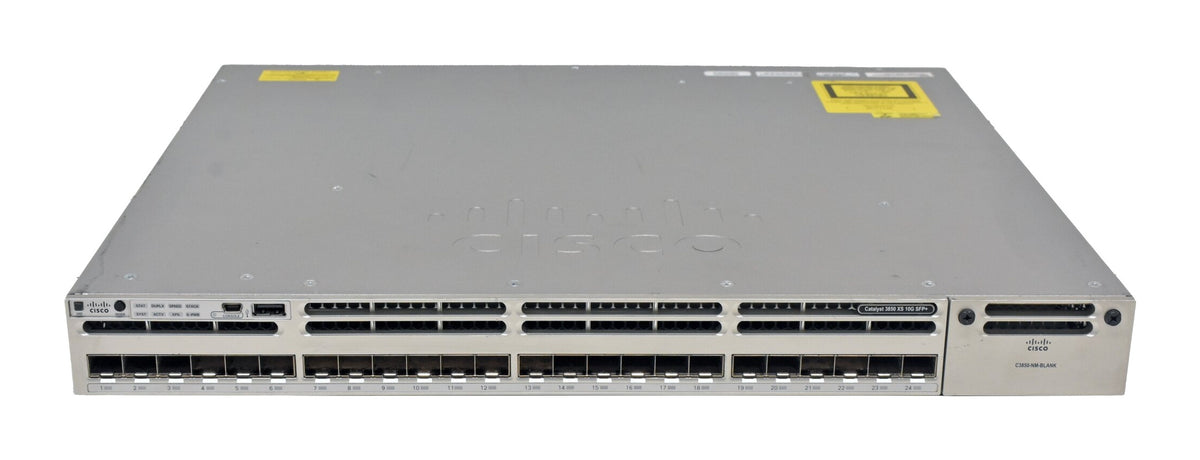

Cisco Catalyst 3850 Series Switch - WS-C3850-24XS-E
Product Overview The Cisco WS-C3850-24XS-E is a high-performance, stackable Layer 3 Ethernet switch from the Catalyst 3850 series, designed for enterprise networks requiring unified wired and wireless access. It supports IP Services for advanced routing and features like integrated wireless controller functionality, making it ideal for scalable, high-speed environments such as data centers, campuses, and branch offices.
Key Specifications
| Category | Details |
|---|---|
| Model | WS-C3850-24XS-E (IP Services image) |
| Ports | 24 x 10 Gigabit Ethernet SFP+ ports (supports 1G/10G speeds) |
| Uplink Module Slot | 1 x network module slot. Uplink modules available from Resilient Tec: C3850-NM-4-10G (4 x 10G SFP+), C3850-NM-8-10G (8 x 10G SFP+), or C3850-NM-2-40G (2 x 40G QSFP+). Contact us to add one to your order. |
| Form Factor | 1 RU rack-mountable (includes rack-mount kit: RCKMNT-1RU-2KX) |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 454.55 Mpps (million packets per second) |
| MAC Address Table | 32,000 entries |
| VLAN IDs | Up to 4,000 supported |
| Power Supply | 1 x 715W AC power supply (PWR-C1-715WAC); redundant option available |
| Fans | 3 x internal fans (FAN-T1) |
| Standards Compliance | IEEE 802.1D (STP), 802.1s (MSTP), 802.1w (RSTP), 802.1x (authentication), 802.3 (Ethernet), 802.3ad (LACP), 802.3z (Gigabit fiber) |
| Layer Support | Layer 3 (IP routing, OSPF, BGP, EIGRP); advanced QoS and ACLs |
| Stacking | StackWise-480 (up to 9 switches, 480 Gbps stack bandwidth) |
| Management | Cisco IOS XE Software; SNMP, RMON, CLI, web-based GUI; wireless controller for up to 100 APs |
| Dimensions (HxWxD) | 1.75 x 17.5 x 17.7 inches (44.5 x 445 x 450 mm) |
| Weight | Approximately 15.5 lbs (7 kg) |
| What's Included | Chassis, 715W AC PSU, power supply blank (C3KX-PS-BLANK), 3 fans, rack-mount kit, power cord (CAB-NOTCH), console cable |
| Warranty | Resilient Tec lifetime warranty, with advance replacement when in stock |
Features and Benefits
- High-Speed Connectivity: Delivers 10G fiber uplinks for low-latency, high-bandwidth applications.
- Unified Access: Converges wired and wireless on a single platform with UADP ASIC for consistent policy enforcement.
- Scalability: Stackable design allows easy expansion without complex cabling.
- Security and Reliability: Supports advanced security features like 802.1x and intrusion detection integration.
- Energy Efficient: IEEE 802.3az Energy Efficient Ethernet compliant.
Lifecycle Note
Cisco's Last Date of Support for the Catalyst 3850 fiber models is April 30, 2027, and Cisco is no longer accepting new SmartNet contracts or renewals for them. Resilient Tec's lifetime warranty covers this switch beyond that date, with advance replacement when in stock.
