UCSC-PCIE-QD32GF - Refurbished - Qlogic QLE2742 Dual Port 32G Fibre Channel HBA

$890.90 USD

Ready to ship  -  1 left

Warranty: Lifetime

Quick answer: The Cisco UCSC-PCIE-QD32GF is a Cisco-branded QLogic QLE2742 dual-port 32Gb (Gen 6) Fibre Channel host bus adapter (HBA) for UCS C-Series rack servers. It connects servers to a Fibre Channel SAN on a PCIe 3.0 x8 card and also runs at 16G and 8G. Resilient Tec sells it refurbished, with a lifetime warranty and free US shipping from Knoxville, TN.

Condition: Refurbished

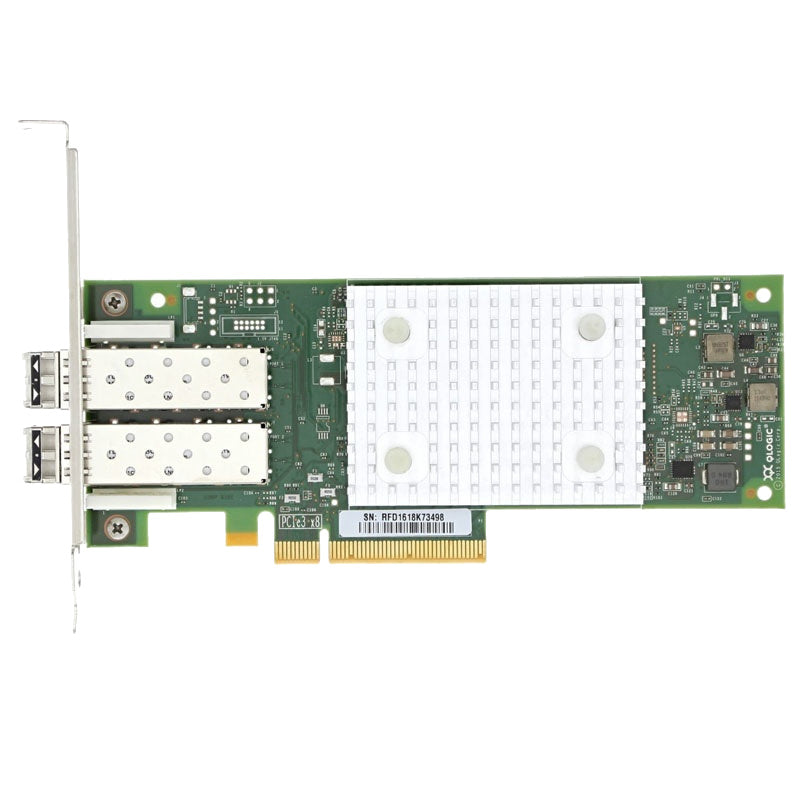

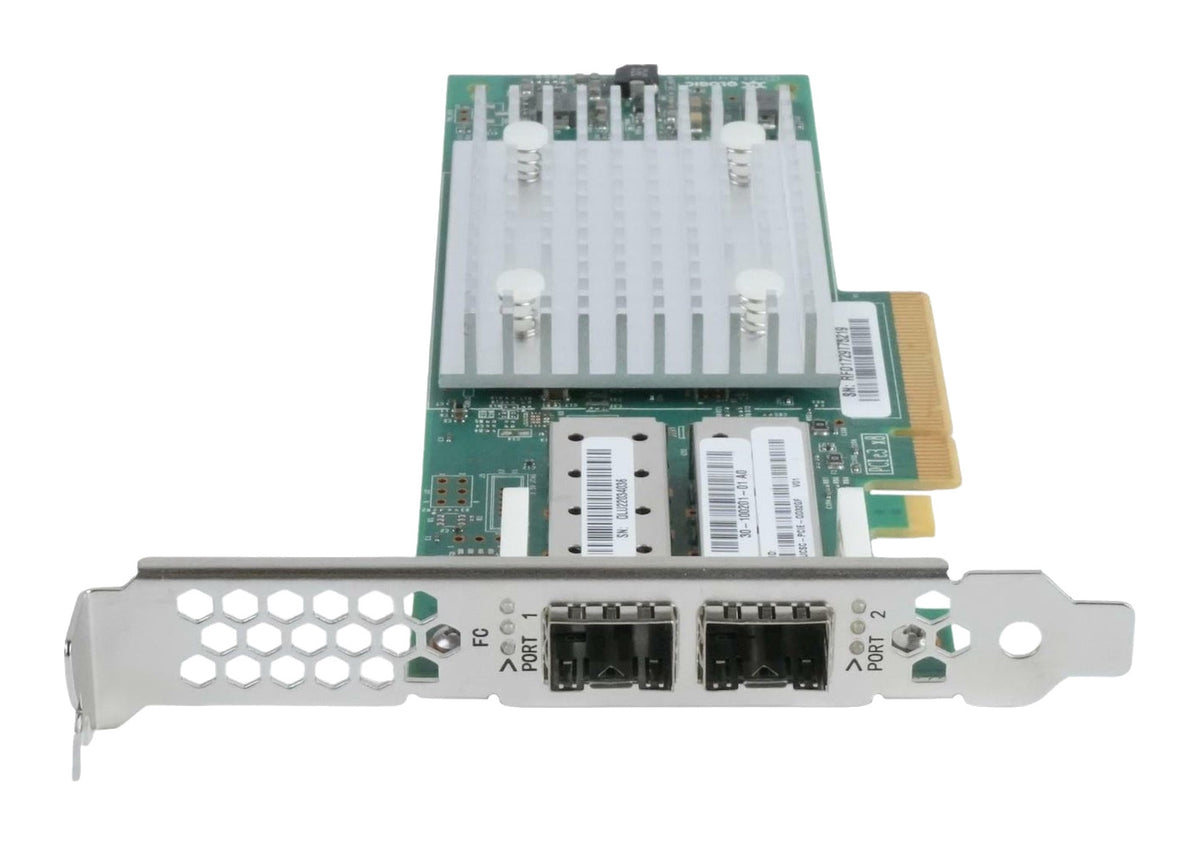

The UCSC-PCIE-QD32GF is a Cisco-branded QLogic QLE2742-CSC Dual-Port Gen 6 Fibre Channel Host Bus Adapter (HBA) designed to deliver high-performance storage connectivity for enterprise environments.

Specifications

  • Fibre Channel Ports: 2

  • Data Transfer Rates:

    • 8 Gbps

    • 16 Gbps

    • 32 Gbps

  • Host Interface: PCI Express 3.0 x8

  • Form Factor: Low-profile, plug-in card

  • Dimensions:

    • Height: 2.7 inches

    • Width: 6.6 inches

Key Features

  • High Performance:

    • Delivers up to 1.3 million IOPS across physical, virtual, and private cloud environments.

    • Supports up to 650K I/O transactions per second per port.

  • Advanced Virtualization Support:

    • Supports N_Port ID Virtualization (NPIV), allowing a single Fibre Channel adapter port to provide multiple virtual ports for enhanced network scalability.

    • Implements CS_CTL-based Quality of Service (QoS), enabling bandwidth controls and guarantees per virtual machine.

  • Enhanced Diagnostics and Management:

    • Features comprehensive diagnostics, including HBA port diagnostics, Link Cable Beaconing (LCB), and Read Diagnostic Parameters (RDP).

    • Supports FC Ping and Fabric Device Management Interface (FDMI) enhancements for streamlined deployment and management.

  • Port Virtualization:

    • Supports up to 2,048 concurrent logins and 2,048 active exchanges per port, facilitating extensive virtualization capabilities.

Compatibility

  • Cisco UCS Servers:

    • Compatible with Cisco UCS C-Series Rack Servers, including models:

      • C220 M4/M5

      • C240 M4/M5

      • C460 M4

  • Cisco Fibre Channel SAN Switches:

    • MDS 9148S 16G FC Switch

    • MDS 9396S 16G FC Switch

This HBA is engineered to meet the demands of high-throughput, low-latency environments, making it an excellent choice for enterprises seeking robust and scalable storage networking solutions.

Frequently Asked Questions

What optics does it need?
Each port takes a Fibre Channel SFP+ transceiver at the matching speed, with multimode fiber (LC). Use optics that match your SAN switch.

Will it work with my 16G SAN?
Yes. It runs at 32G, 16G or 8G and links at the fastest speed both ends support.

What warranty and shipping come with it?
Resilient Tec's lifetime warranty. US standard shipping is free with no minimum, and orders typically arrive in 3 to 5 days.
