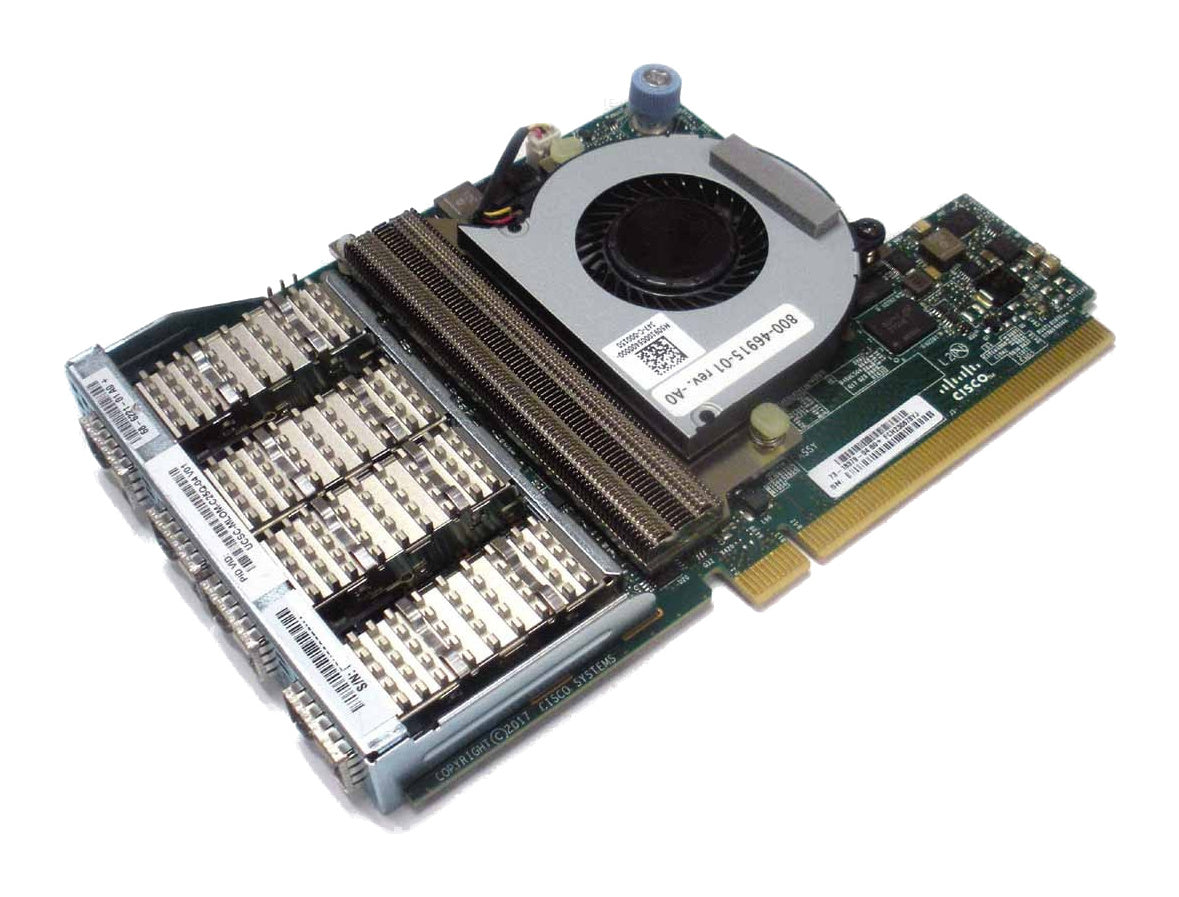

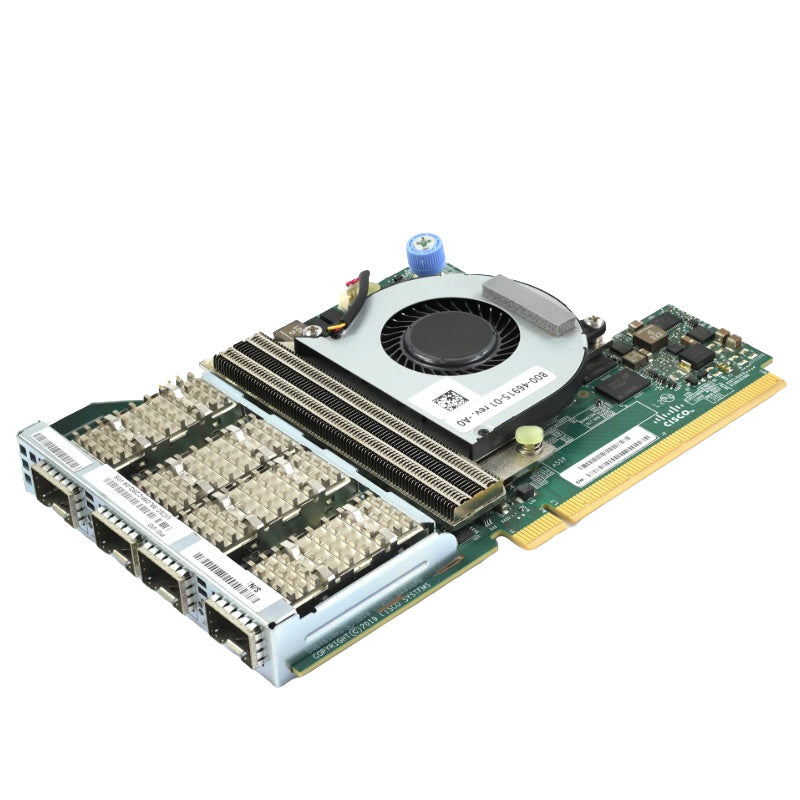

UCSC-MLOM-C25Q-04 - Refurbished - Cisco UCS VIC 1457 Quad Port 10/25G SFP28 mLOM
Warranty: Lifetime
Quick answer: The Cisco UCSC-MLOM-C25Q-04 is the UCS VIC 1457, a quad-port 10/25G SFP28 mLOM adapter for UCS C-Series M5 rack servers such as the C220 M5 and C240 M5. It carries Ethernet and FCoE and needs SFP28 or SFP+ optics or DAC cables. Resilient Tec sells it refurbished, with a lifetime warranty and free US shipping from Knoxville, TN.
Condition: Refurbished
The Cisco UCS Virtual Interface Card (VIC) 1457, identified by part number UCSC-MLOM-C25Q-04, is a modular LAN on motherboard (mLOM) adapter designed for Cisco UCS C-Series Rack Servers. This quad-port card supports both 10-Gigabit and 25-Gigabit Ethernet, as well as Fibre Channel over Ethernet (FCoE), providing versatile and high-bandwidth connectivity options.
Key Specifications:
-
Host Interface: PCI Express 3.0 x16
-
Ports: Four SFP28 slots supporting 10/25 Gbps speeds
-
Data Transfer Rate: Up to 25 Gbps per port
-
Media Type Supported: Optical Fiber
-
Network Technology: 25GBase-X
-
Form Factor: Plug-in module (mLOM)
-
Connectivity Technology: Wired
-
Compatible Servers: Cisco UCS C220 M5, C240 M5, and C240 SD M5
This adapter enables a policy-based, stateless computing environment by presenting PCIe standards-compliant interfaces to the host, which can be dynamically configured as either Network Interface Cards (NICs) or Host Bus Adapters (HBAs).
Frequently Asked Questions
What is a Cisco VIC?
A Virtual Interface Card presents many virtual NICs and HBAs to the server from one adapter, all set by UCS Manager service profiles. It carries Ethernet and Fibre Channel over Ethernet (FCoE) traffic.
What cables or optics does it need?
Each SFP28 port takes a 25G SFP28 or 10G SFP+ transceiver, or a direct-attach copper cable. Optics are not included.
What warranty and shipping come with it?
Resilient Tec's lifetime warranty. US standard shipping is free with no minimum, and orders typically arrive in 3 to 5 days.
