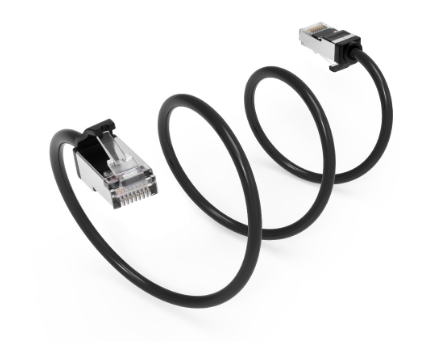

Cat 8 STP Patch Cables

$4.38 USD

Ready to ship  -  1 left

Warranty: Lifetime

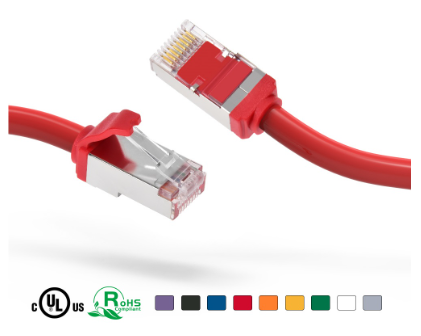

Color
blue
Length
0.5ft

Cat 8 STP Patch Cables

  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Backwards compatible: YES

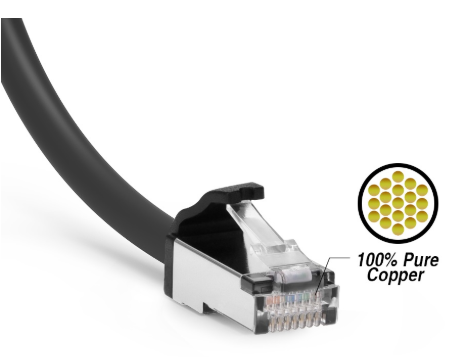

  • Conductor: 4-Pair 28AWG stranded pure copper
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield

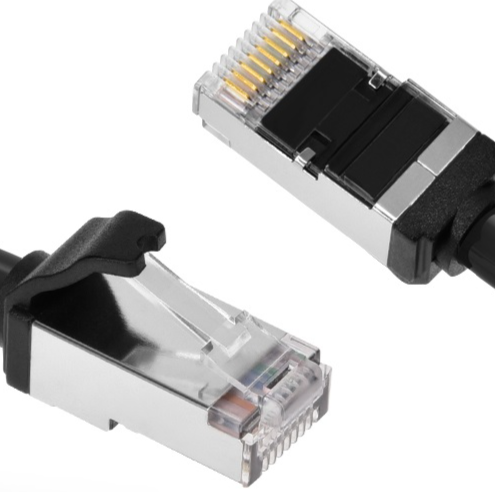

  • Connectors: RJ45 plug with 50 micron gold plated contacts
  • Jacket: PVC Jacket
  • Certifications: Complaint with TIA/EIA standard by UL and ETL, RoHS Compliant
  • Wiring: T568B standard
  • Standards & Compliance: Meets all Category 8 requirements per ANSI/TIA, ISO/IEC and CENELEC EN standards; ANSI/TIA-568-D Cat.8 and ISO/IEC 3rd Edition 11801 Class L; RoHS compliant (EU Directive 2011/65/EU)
  • Operating Temperature: -20 to 75C; Rated temperature 75C; Installation temperature -20 to 60C
  • Minimum Bending Radius: 15x OD in operation, 10x OD after operation
  • Cable Construction: Stranded bare copper conductors (7/0.12mm), FMPE insulation, AL/Mylar tape (100% coverage), tinned copper drain wire and AL-MG braid shield; overall jacket OD 6.0mm
  • Applications: 1000BASE-T Gigabit Ethernet, 10/100BASE-TX Fast Ethernet (IEEE 802.3), 100 VG-AnyLAN (IEEE 802.12), 2000MHz broadband video, voice, T1 and ISDN


>
