Cisco SFP-H25G-CU2M 25GBASE-CR1 SFP28 Passive DAC Cable — 2m, New
Warranty: Lifetime
25GBASE-CR1 passive DAC — SFP28 to SFP28 copper twinax, not optical AOC
Cisco SFP-H25G-CU2M — 25G SFP28 passive Direct Attach Copper cable, 2 meter
Cisco Part Number: SFP-H25G-CU2M
Common aliases / related PIDs: SFP-H25G-CU1M · SFP-H25G-CU2.5M · SFP-H25G-CU3M · 25GBASE-CR1
Description: Passive SFP28-to-SFP28 twinax DAC for short-reach 25 Gigabit Ethernet (25GBASE-CR1)

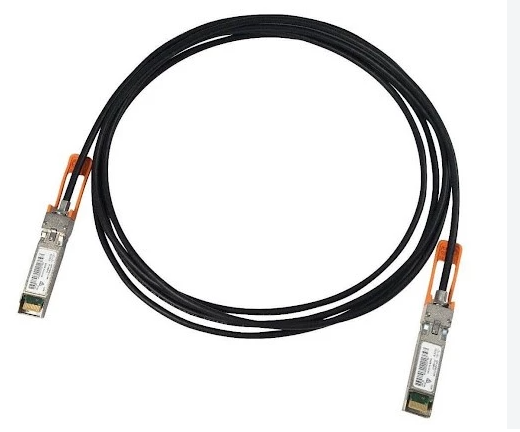

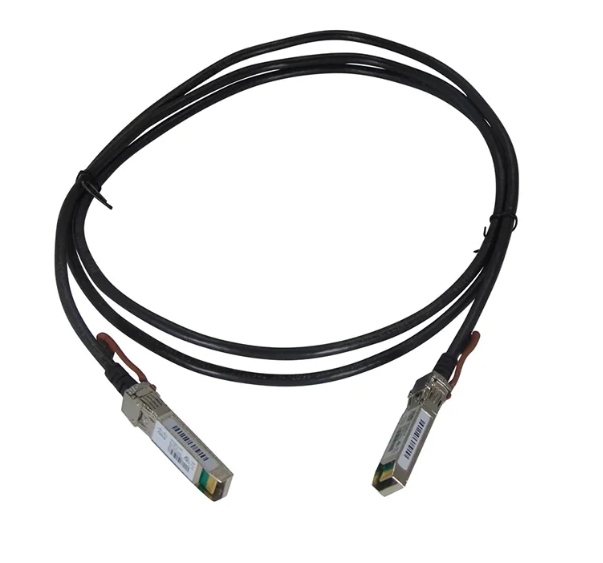

This is a genuine Cisco 2-meter 25GBASE-CR1 passive copper DAC — SFP28 connectors on both ends, brown pull tab per Cisco’s length color code. It is the low-latency, near-zero-power way to link 25G SFP28 ports inside a rack or to an adjacent rack without optics or fiber plant.
Lifetime warranty from Resilient Tec.
Which One Do I Need?
| Going into | You need |
|---|---|
| Cisco 25G SFP28 ports, ~2 m reach, no FEC required on host | SFP-H25G-CU2M — this product |
| Same platforms, 1 m intra-rack | SFP-H25G-CU1M (1 m) |
| Same platforms, 2.5 m (requires BASE-R / FC-FEC on host) | SFP-H25G-CU2.5M |
| Compatible (third-party) 1 m DAC at a lower ticket | SFP-H25GB-CU1M Compatible |
| Longer reach or fiber plant instead of copper DAC | 25G SFP28 SR/LR optics + fiber — not this cable |
Length and FEC matter. Cisco rates 1 m / 1.5 m / 2 m passive DACs without host FEC; 2.5 m and 3 m require BASE-R (FC-FEC); 4 m / 5 m require RS-FEC. Confirm FEC capability on your Nexus/Catalyst hosts before ordering past 2 m.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | SFP-H25G-CU2M |
| Form Factor | SFP28 to SFP28 |
| Ethernet Standard | IEEE 802.3by 25GBASE-CR1 |
| Data Rate | 25 Gbps |
| Cable Type | Passive Direct Attach Copper (twinax DAC) |
| Cable Length | 2 meters (6.6 ft) |
| Wire Gauge | 30 AWG (typical) |
| Pull Tab Color | Brown (Cisco length code) |
| Power Consumption | Passive, ~0.1 W max |
| Host FEC | Not required (≤ 2 m) |
| Operating Temperature | 0°C to 70°C (commercial) |
| Standards | IEEE 802.3by, SFF-8402, SFP28 MSA, RoHS |
| Compatibility | Cisco switches/servers with 25G SFP28 ports (e.g. Nexus 9000/3000, Catalyst 9300/9400/9500) |
| Warranty | Lifetime, backed by Resilient Tec |
| Condition | New |
Note on Passive DAC vs Optics
Passive DACs draw essentially no power and add almost no latency — ideal for ToR switch-to-server and switch-to-switch links inside or between adjacent racks. They are not a substitute for SR/LR optics when you need fiber plant, longer reach, or optical isolation.
Good to Know
- Genuine Cisco PID — EEPROM coded for Cisco 25G SFP28 platforms.
- Hot-pluggable; no configuration required beyond enabling the port.
- 2 m is the longest Cisco passive length that typically does not require host FEC.
- New condition — factory-new inventory from Resilient Tec stock.
Quick Checklist — Is This the Right Cable?
You have two 25G SFP28 cages. The run is about 2 meters. You want a passive copper DAC, not an AOC or optic+fiber. Your host does not need FEC for ≤ 2 m links. You specifically need the Cisco SFP-H25G-CU2M PID.
Availability
In stock at Resilient Tec · Ships from Knoxville, TN.
Need 1 m, 2.5 m, or another length in the SFP-H25G-CUxM family? Ask and we will point you at the right sibling. Request a quote →
Warranty: lifetime, backed by Resilient Tec.
