OS2-LCLC-10, OS2 singlemode Fiber, 10 meter
Warranty: Lifetime
Quick answer: The OS2-LCLC-10 is a 10-meter OS2 single-mode LC to LC duplex fiber patch cable (9/125 µm, yellow, OFNR riser-rated, UPC polish), used for single-mode links with LR, LR4 and CWDM4 optics. Resilient Tec sells it new, with a lifetime warranty and free US shipping from Knoxville, TN.

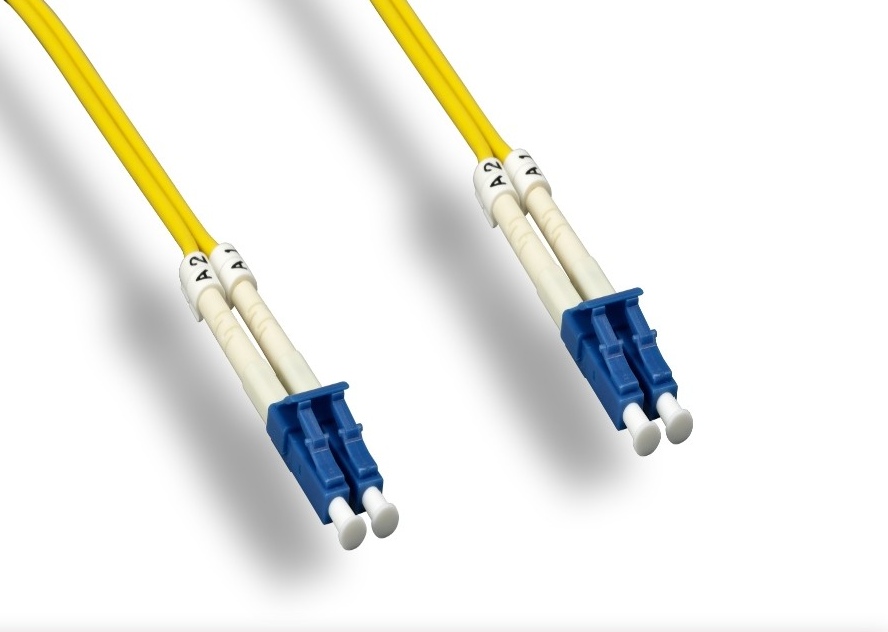

LC TO LC DUPLEX SINGLE-MODE FIBER OPTIC CABLE
- Our high-quality 9/125 single-mode fiber cable with LC/LC connectors is perfect for fast Ethernet, gigabit Ethernet, and other data applications.
- Single-mode fiber cable is an ideal solution for long-range networking.
- OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications.
- Corning® glass 9μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to LC |
| Fiber Mode: | Single Mode, 9 / 125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | ≤ 0.3 dB |
| Return Loss: | ≥ 55 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | OFNR (Riser) |
| Jacket Color: | Yellow |
Frequently Asked Questions
What distances does an OS2 LC to LC cable support?
Over OS2 single-mode fiber, 10GBASE-LR and 100G LR4 up to 10 km, and 100G CWDM4 up to 2 km, depending on the optic. The patch cord itself adds less than 0.3 dB of insertion loss.
Can I use this cable with multimode (SR) optics?
No. SR optics need multimode fiber (OM3, OM4 or OM5). Use an OM4 LC to LC cable for SR links.
Is this cable UPC or APC?
UPC to UPC, which is what standard LC duplex optics such as SFP+ LR and QSFP28 LR4/CWDM4 use.
What warranty and shipping come with it?
Resilient Tec's lifetime warranty. US standard shipping is free with no minimum, and orders typically arrive in 3 to 5 days.
