NG3PY - Refurbished - Dell NVIDIA L4 24GB Passive GPU

Condition - Refurbished

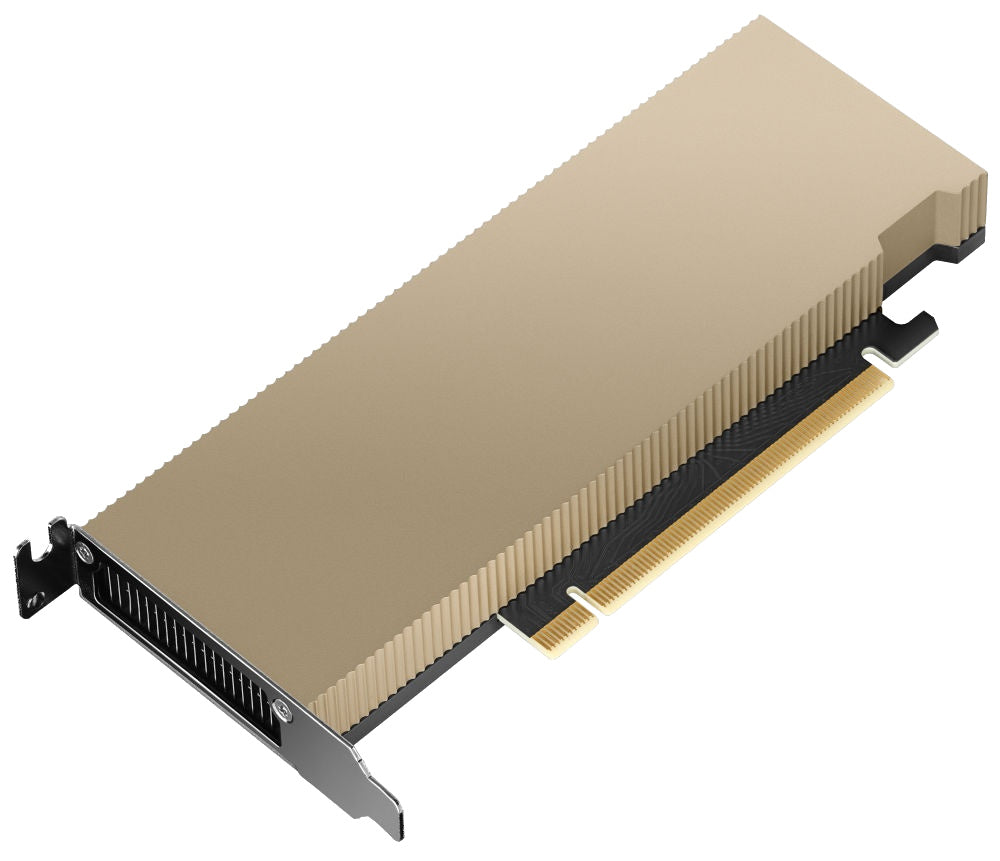

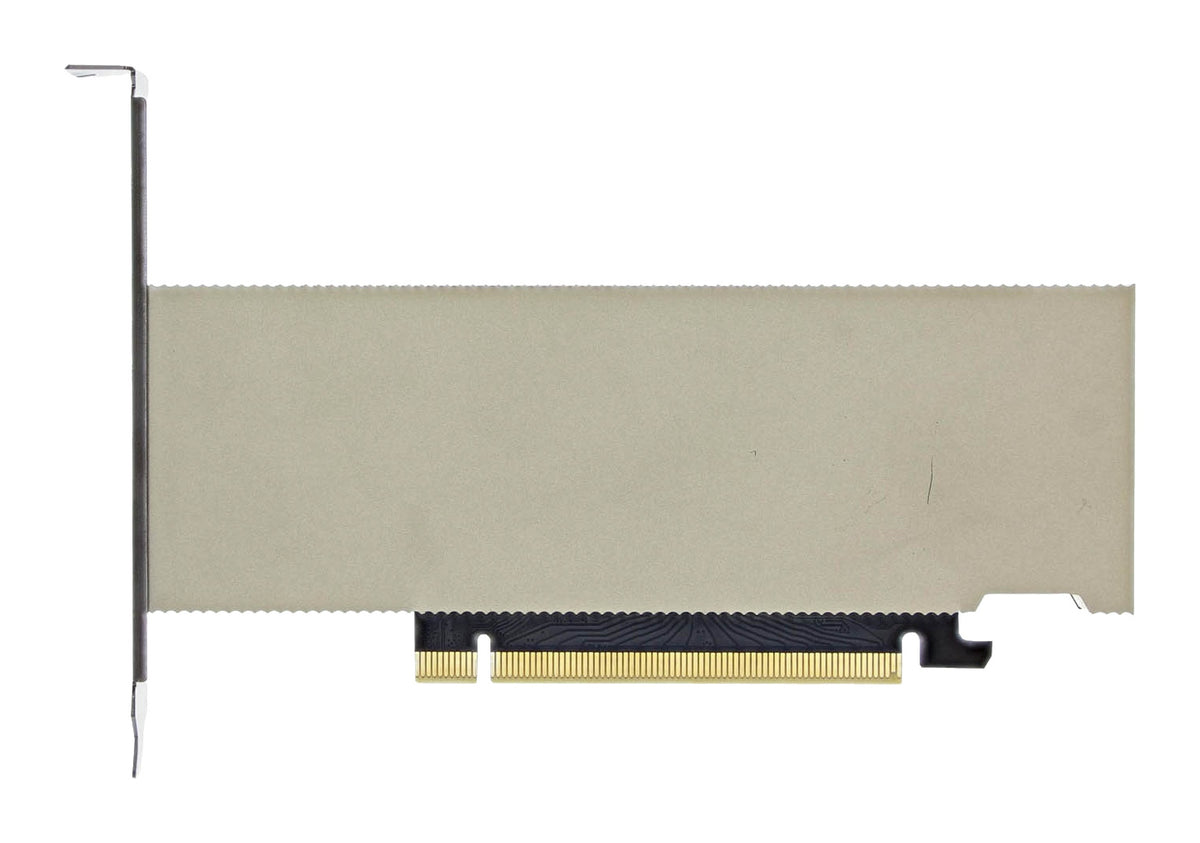

Dell NVIDIA L4 24GB Passive GPU (Dell Part Number: NG3PY) is a high-efficiency, low-profile accelerator designed for AI inference, video processing, virtual desktops, and graphics-intensive workloads. Powered by NVIDIA’s Ada Lovelace architecture, it offers significant performance improvements over its predecessor, the T4, while maintaining a compact and energy-efficient design.

Specifications

• GPU Architecture: NVIDIA Ada Lovelace

• CUDA Cores: 7,424

• Tensor Cores: 232 (4th generation)

• RT Cores: 58 (3rd generation)

• GPU Memory: 24 GB GDDR6 with ECC

• Memory Bandwidth: 300 GB/s

• Interface: PCIe Gen 4.0 x16

• Form Factor: Low-profile, single-slot (169 mm x 69 mm)

• Cooling: Passive (requires adequate system airflow)

• Power Consumption: 72W (no external power connector required)

• Display Outputs: None

• Supported APIs: DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3, CUDA 12.0, OpenCL 3.0

Performance Highlights

• FP32 (Single Precision): 30.3 TFLOPS

• TF32 Tensor Performance: 60 TFLOPS (up to 120 TFLOPS with sparsity)

• FP16 Tensor Performance: 121 TFLOPS (up to 242 TFLOPS with sparsity)

• FP8 Tensor Performance: 242.5 TFLOPS (up to 485 TFLOPS with sparsity)

• INT8 Performance: 242.5 TOPS (up to 485 TOPS with sparsity)

Compatibility & Deployment

The L4's low-profile, single-slot design and passive cooling make it ideal for dense server environments. It is compatible with systems that have a PCIe Gen 4.0 x16 slot and sufficient airflow. The absence of external power connectors simplifies integration into existing infrastructures.
