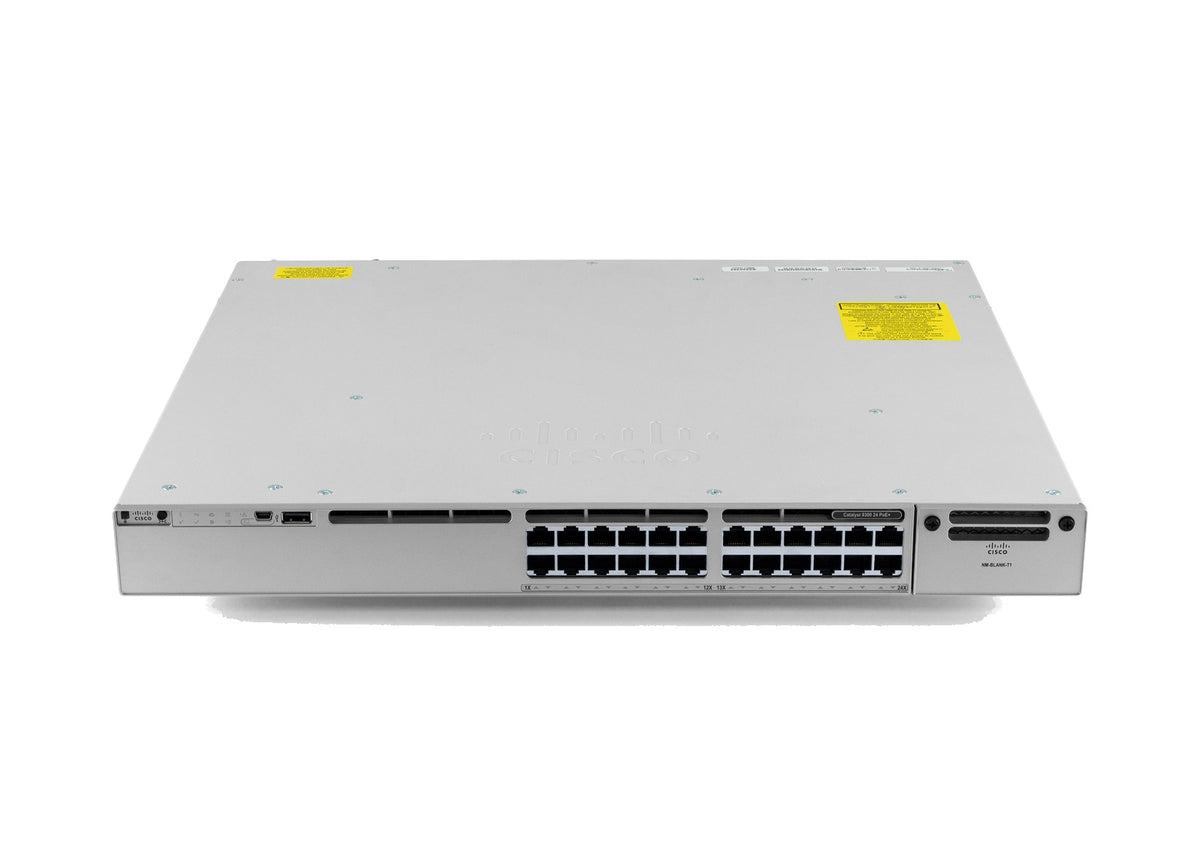

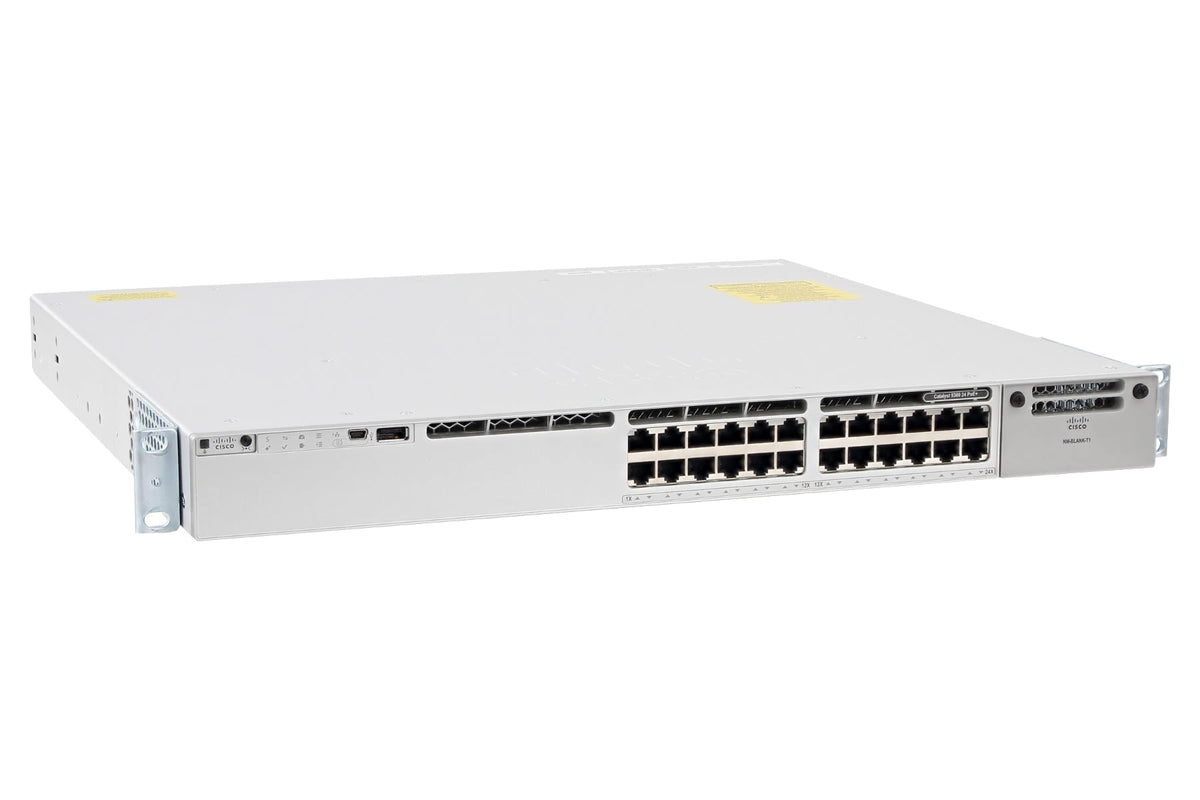

C9300-24P-E, Cisco Catalyst 24 Port Switch, PoE, Refurbished, Original
Warranty: Lifetime
Cisco Catalyst C9300-24P-E Switch – Specifications
Product Overview
The Cisco Catalyst C9300-24P-E is a 24-port PoE+ enterprise access switch designed for secure, high-performance networking. It runs on Cisco IOS XE with the Network Essentials license, providing core Layer 3 features and scalability for enterprise environments.
Hardware
24 × 10/100/1000 Mbps PoE+ RJ-45 ports (up to 30 W per port)
PoE budget up to 445 W (with appropriate power supply)
Modular uplink slot supporting 4 × 1 Gb, 4 × 10 Gb, 2 × 25 Gb, or 2 × 40 Gb modules
Dual redundant, hot-swappable power supplies supported
Hot-swappable fan modules with front-to-back airflow
Flash memory: 16 GB
DRAM: 8 GB
Dimensions: 1.73 × 17.5 × 17.5 in (4.4 × 44.5 × 44.5 cm)
Approximate weight: 15.9 lb
Performance
Switching capacity up to 208 Gbps
Forwarding rate up to 154.76 Mpps
StackWise-480 technology supporting up to 480 Gbps stack bandwidth
Supports up to 8 switches in a stack
Software & Features
Operating system: Cisco IOS XE with Network Essentials license
Layer 3 routing with static, RIP, OSPF, EIGRP, and PBR
Security features including TrustSec, MACsec, and 802.1X authentication
Programmability and automation support with Cisco DNA Center
