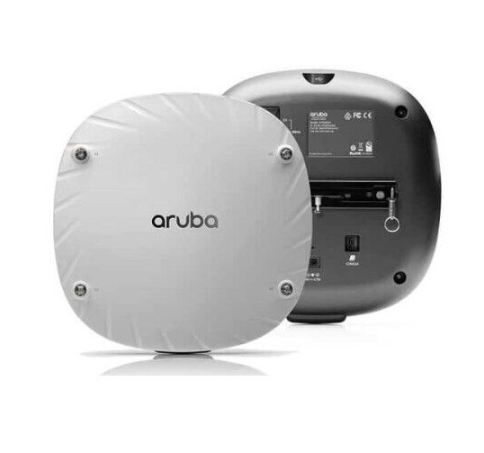

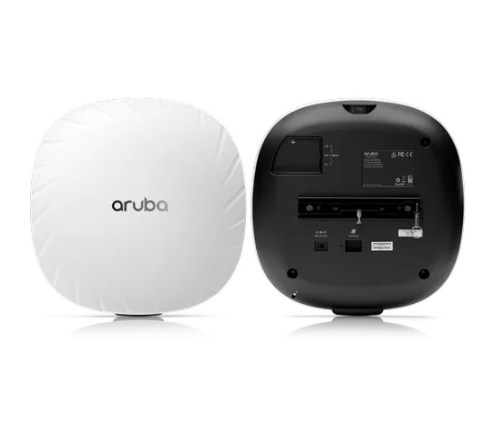

Aruba AP-535 Access Point (JZ337A)
Warranty: Lifetime
Aruba AP-535 Access Point (JZ337A) is a brand-new, factory-sealed Wi-Fi 6 (802.11ax) unified campus access point built for high-density enterprise deployments. It pairs 4x4 MIMO dual-radio performance with HPE SmartRate multi-gigabit uplinks, integrated Bluetooth and Zigbee IoT radios, and the flexibility to run as a controller-managed, controller-less Instant, or Aruba Central-managed AP.
Key Features
- Wi-Fi 6 (802.11ax) dual radio: 4x4 MIMO on both 5GHz and 2.4GHz
- Up to 2.4 Gbps (5GHz) and 1.15 Gbps (2.4GHz) for up to 3.55 Gbps aggregate throughput
- OFDMA and uplink/downlink MU-MIMO for high client density and lower latency
- Two HPE SmartRate ports (100/1000/2500/5000BASE-T) with LACP link aggregation
- Four integrated dual-band downtilt omnidirectional antennas (3.5 dBi at 2.4GHz, 5.4 dBi at 5GHz)
- Built-in Bluetooth 5 and Zigbee (802.15.4) IoT radio
- Powered by 802.3af/at/bt PoE (Class 3 or higher)
- Unified AP — deploys as a controller-managed campus AP, an Aruba Instant AP, or via Aruba Central
- HPE Aruba Networking Limited Lifetime Warranty
Technical Specifications
- Model: Aruba AP-535 (JZ337A)
- Condition: New
- Radios: Dual radio, 802.11ax, 4x4 MIMO on 5GHz and 2.4GHz
- Max Data Rates: 2.4 Gbps (5GHz, 4SS HE80), 1.15 Gbps (2.4GHz, 4SS HE40)
- Client Capacity: Up to 1,024 associated clients per radio (200 active recommended)
- Ports: 2x HPE SmartRate (100/1000/2500/5000BASE-T), LACP support
- PoE: 802.3af/at/bt (Class 3+), up to 26.4W max consumption
- Antennas: 4x integrated dual-band downtilt omnidirectional
- IoT Radios: Bluetooth 5 (BLE), Zigbee (802.15.4)
- Dimensions: 240mm (W) x 240mm (D) x 57mm (H)
- Weight: 1,270g (2.8 lbs)
- Management: Aruba Central, Mobility Controller, or Aruba Instant
- Warranty: HPE Aruba Networking Limited Lifetime Warranty
What's in the Box
1x Aruba AP-535 Access Point (JZ337A) and mounting bracket. PoE injector/switch and power supply are sold separately.
Frequently Asked Questions
Does this access point include a power supply?
No. The AP-535 is powered via PoE (802.3af/at/bt) from a compatible switch or injector, which is sold separately.
Can this AP be managed without a hardware controller?
Yes. It can run as a controller-managed campus AP, a controller-less Aruba Instant AP, or be managed through Aruba Central.
Does this AP support IoT devices?
Yes. It includes an integrated Bluetooth 5 and Zigbee (802.15.4) radio for IoT and location services.
What is the warranty on this unit?
This access point is covered by HPE Aruba Networking's Limited Lifetime Warranty.
