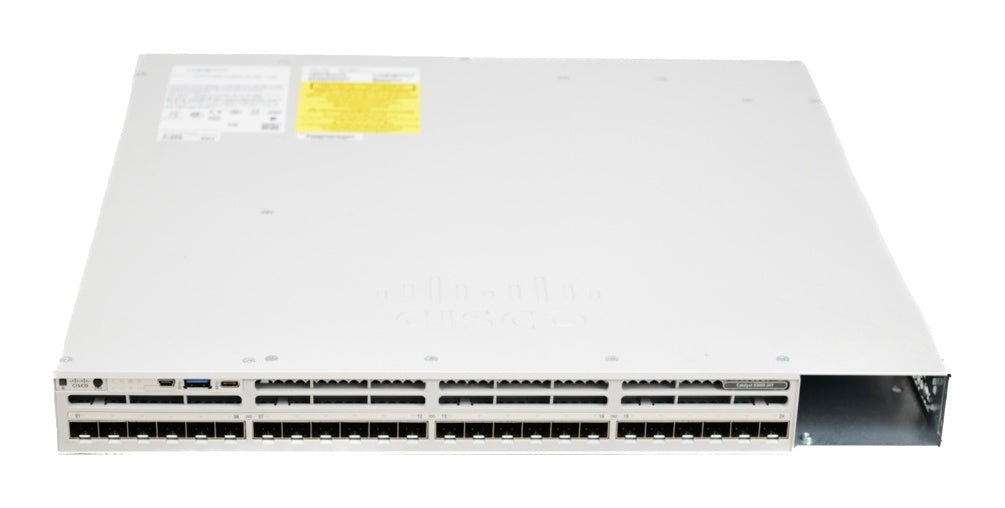

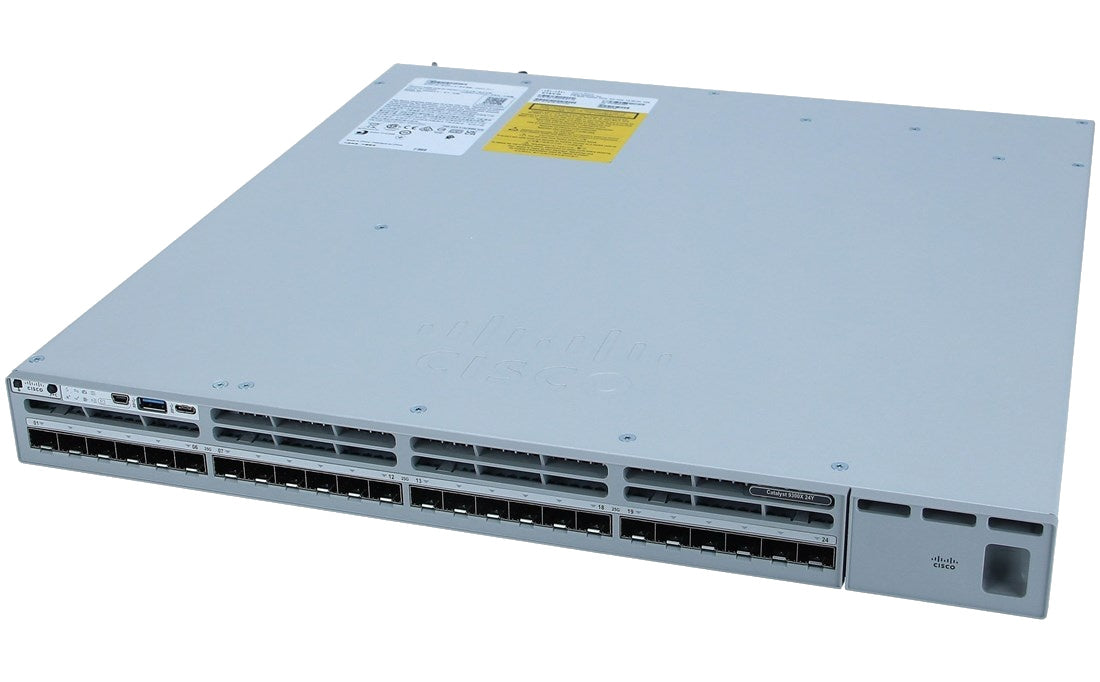

9300X-24Y-E, Cisco Catalyst 24-Port 25G/10G/1G SFP28 Switch, Refurbished
Warranty: Lifetime
Cisco Catalyst 9300X-24Y-E - 24-Port 25G/10G/1G SFP28 Switch
High-Performance Enterprise Switching for Demanding Networks
Elevate your network infrastructure with the Cisco Catalyst 9300X-24Y-E, a stackable Layer 3 switch designed for high-density, high-speed connectivity. This model delivers 24 ports of 25G/10G/1G fiber Ethernet via SFP28 transceivers, perfect for data centers, campuses, and branch offices requiring seamless IoT integration, enhanced security, and cloud-ready scalability. Built on Cisco's UADP 2.0sec ASIC, it supports advanced features like hardware-based IPsec encryption, programmable telemetry, and Cisco DNA Center integration for intent-based networking.
Key Features:
- 24 x 25G/10G/1G SFP28 downlink ports for ultra-fast fiber connectivity, backward compatible with 1G/10G speeds.
- Modular uplink options (via expansion slot) for flexible 1G/10G/25G/40G/100G uplinks, enabling future-proof scalability.
- StackWise-1T technology for up to 1 Tbps stacking bandwidth across up to 8 switches, with sub-50ms failover via Stateful Switchover (SSO).
- Network Essentials licensing included, with support for Cisco DNA Essentials for automated management and analytics.
- Advanced security & QoS: MACsec encryption, 802.1x authentication, ACLs, and policy-based routing for robust threat protection.
- High availability: Dual redundant power supplies (715W AC standard), StackPower sharing, and Non-Stop Routing (NSR).
- Management & monitoring: Full Cisco IOS XE support, Flexible NetFlow (FNF), SNMP, Syslog, and RESTCONF/YANG for programmability.
- Form factor: 1RU rack-mountable, with 3 fans for efficient cooling in dense environments.
Technical Specifications:
| Category | Details |
|---|---|
| Ports | 24 x 25G/10G/1G SFP28 (downlinks); 1 x modular uplink slot |
| Switching Capacity | Up to 1.2 Tbps (full duplex) |
| Forwarding Rate | Up to 890 Mpps |
| MAC Address Table | 32K entries |
| VLAN IDs | 4K |
| Jumbo Frames | 9,193 bytes |
| Power Supplies | Dual hot-swappable (715W AC default; supports PoE options up to 1900W) |
| Power Consumption | Max 975W (with full load) |
| Dimensions (HxWxD) | 1.73 x 17.5 x 18.0 in (4.4 x 44.5 x 45.7 cm) |
| Weight | 16.5 lbs (7.5 kg) |
| MTBF | 390,000 hours |
| Warranty | Limited Lifetime Hardware Warranty (90 days software) |
Ideal For:
- High-bandwidth applications like 5G backhaul, AI/ML workloads, and video streaming.
- Environments needing multigigabit support without rewiring—leverages existing fiber infrastructure.
- Cisco SD-Access deployments for automated policy enforcement and zero-trust security.
Compatibility Notes:
- Requires separate SFP28 transceivers (not included).
- Stackable only with other Catalyst 9300X models; mixed stacking with 9300 not supported.
- Runs Cisco IOS XE 17.3 or later for optimal features.
