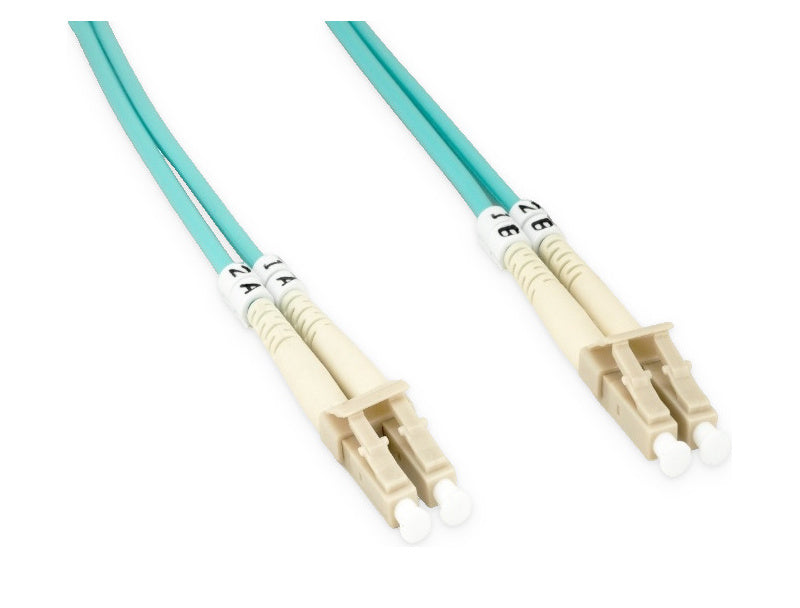

7 Meter, OM4 Fiber Cable, LC to LC, OM4-LCLC-07
Regular price
$23.56 USD
Warranty: Lifetime
OM4 LC TO LC 10GB MULTI-MODE FIBER OPTIC CABLE
- Our high-quality OM4 multi-mode fiber cable with LC/LC connectors is perfect for high-throughput applications.
- OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
- With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
- Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
- LSZH/OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
- Corning® glass 50μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to LC |
| Fiber Mode: | OM4, Multimode, 50 / 125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | < 0.3 dB |
| Return Loss: | > 35 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | LSZH/OFNR (Riser) |
| Jacket Color: | Aqua |
