30 Meter, OM4 Multimode Fiber Cable, LC to LC, OM4-LCLC-30
Warranty: Lifetime

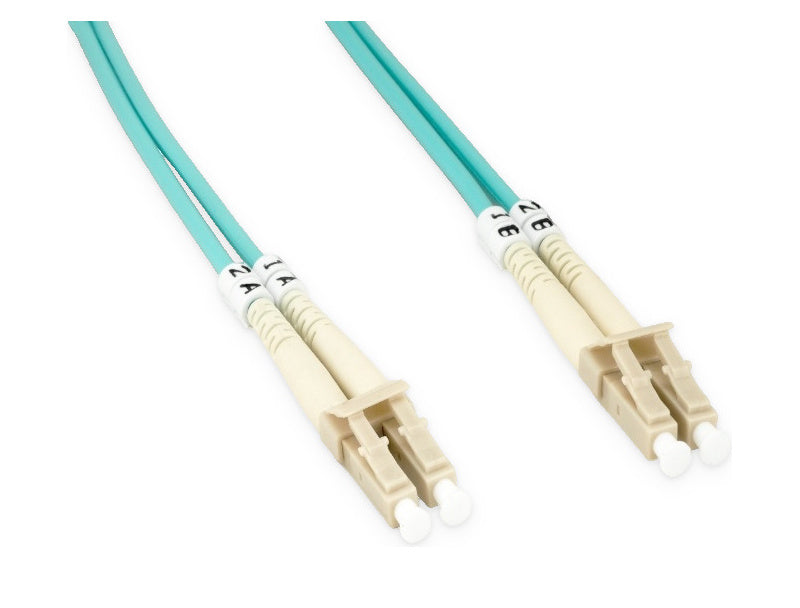

Quick answer: The OM4-LCLC-30 is a 30-meter OM4 multimode LC to LC duplex fiber patch cable (50/125 µm, aqua, LSZH/OFNR riser-rated, UPC polish), used for short-reach 850 nm links between switches, servers and patch panels. Resilient Tec sells it new, with a lifetime warranty and free US shipping from Knoxville, TN.
OM4 LC TO LC 10GB MULTI-MODE FIBER OPTIC CABLE
- Our high-quality OM4 multi-mode fiber cable with LC/LC connectors is perfect for high-throughput applications.
- OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
- With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
- Supports 10GBASE-SR up to 400 m, 40G BiDi up to 150 m and 100G BiDi up to 100 m over duplex LC.
- LSZH/OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
- The small LC connector is perfect for high-density network applications.
- Use with LED and VCSEL laser light sources.
- Backward compatible with LED-based 50/125 multimode fiber applications.
- Corning® glass 50μm core and 125μm cladding.
- Test report included in each cable package.
- UL listed
| Fiber Connector : | LC to LC |
| Fiber Mode: | OM4, Multimode, 50 / 125 μm |
| Fiber Count: | 2 Strands |
| Polish Type: | UPC to UPC |
| Insertion Loss: | < 0.3 dB |
| Return Loss: | > 35 dB |
| Jacket OD: | 2.0 mm |
| Jacket Material: | LSZH/OFNR (Riser) |
| Jacket Color: | Aqua |
Frequently Asked Questions
What distances does an OM4 LC to LC cable support?
With duplex LC optics, OM4 supports 10GBASE-SR up to 400 m, 25GBASE-SR up to 100 m, 40G BiDi up to 150 m and 100G BiDi (SR1.2/SRBD) up to 100 m. Parallel 40G/100G SR4 optics use 12-fiber MPO trunks instead of LC duplex patch cords.
What is the difference between OM3, OM4 and OM5?
OM4 has higher modal bandwidth than OM3 (4700 vs 2000 MHz·km at 850 nm), which extends 10G reach from 300 m to 400 m. OM5 matches OM4 at 850 nm and adds the 850–953 nm band for SWDM optics. OM4 is the standard choice for most data-center 10G/25G/100G BiDi links.
Can I use this cable with single-mode (LR) optics?
No. LR, LR4 and CWDM4 optics need single-mode fiber. Use an OS2 LC to LC cable for those.
What warranty and shipping come with it?
Resilient Tec's lifetime warranty. US standard shipping is free with no minimum, and orders typically arrive in 3 to 5 days.
